Model |
Power supply |
Description |
Input Output(s) |
Option |
Finish |
|
![]() |

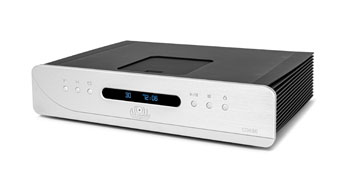

CD400 EVO |
30 VA+2x10 48 000 µf |
The CD400 EVO player is equipped with the latest top loading mechanics developed by atoll it has perfectly matched high-performance power supplies and audio stages offering and immersive stereo image and striking sound realism.This player is also a high-end converter. |
|
None |
Black or silver |
![]() |

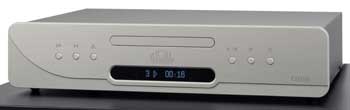

CD200 |
30+10+1,6VA 21 450 µf |
The Evolution Series CD players benefit from many innovations in power supplies or audio and conversion stages. In addition these devices can now accommodate a 24 bits/kHz DAC board relying on the player's internal cconverter. The USB input is asynchronous. |
Digital out: Coax and Optical, in: USB-B |
Digital input board |
Black or silver |
![]() |

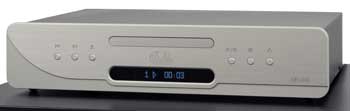

DR200 EVO |
30+1,6VA 23 000 µf |
The Evolution series CD drives benefit from numerous innovations in terms of power supplies or digital output stages. Teac drive with anti-vibration treatment. |
Digital out: Coax and optical,AES/EBU XLR Connector |
No |
Black or silver |
![]() |
CD100 EVO |
30+10+1,6VA 21 450 µf |
The Evolution Series CD players Benefit from numerous innovations in terms of power supplies or audio and coversion stages. In addition , all these devices can now receive a 24 bits/192 kHz DAC card based on the player's internal converter. |
Digital out: Coax and optical |
Digital input board USB-B |
Black or silver |
![]() |
DR100 EVO |
30+1,6VA 15 000 µf |
Teac drive with anti-vibration treatment. Low noise linear power supply. LVDS circuit. Low power OLED display. |
Digital out: Coax and optical |
No |
Black or silver |
![]() |
CD80 EVO |
30+4,6+1,6VA 21 400 µf |
Teac pure audio CD drive. Bur-Brown PCM1791A. DC coupling. Discrete Class A output stages. Low - power OLED display. |
Digital out: Coax and optical,USB-B |
Digital input board |
Black or silver |
![]() |
CD50 EVO |
30+4,6+1,6VA 16 700 µf |
Teac pure audio CD drive. Bur-Brown PCM1793. DC coupling. Discrete Class A output stages.Can receive a 24bits/192 kHz DAC, the USB input is asynchronous. |
Digital out: Coax and optical |
Digital
USB-Binput board |
Black or silver |
![]() |

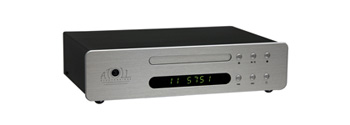

MD100 |
10VA 11 094 µf |
Mini CD player with Teac pure audio CD drive. Bur-Brown PCM1522. |
Digital out: Coax and optical L&R analogue stereo out (RCA) |
No
|
Black or silver |
CD200, 100, 80, 50, DR200, DR100 Signature and CD400SE are supplied with Atoll global remote.
